ZQ-26 Pneumatic Mucker Rocker Shovel

ZQ-26 Pneumatic Mucker Rocker Shovel Is a compressed air powered rock shovel used for moving rocks , ore when driving headings or the explosive blows up the big rock or ore. It is a high output rock s

Related Products

Description of ZQ-26 Pneumatic Mucker Rocker Shovel

ZQ-26 Pneumatic Mucker Rocker Shovel Is a compressed air powered rock shovel used for moving rocks , ore when driving headings or the explosive blows up the big rock or ore. It is a high output rock shovel with minimum maintenance costs.

Loading materials: gold, non-ferrous metal, black metal, nonmetal, and rock, ore, and etc. It can be used in a explosion proof fields. The max. diameter of the medium is 500mm. When the diameter is 250mm, the loading efficiency is best. It runs on the railway track, so the wheel gauge is 600mm in normal, when the gauge is 762mm, 900mm, or others, pls tell in advance.

Specification of ZQ-26 Pneumatic Mucker Rocker Shovel

Model

Z-17W

Z-17WYK

ZLKY20

Z-20W

Z-20WYK

ZLKY26

Z-30W

Z-30WYK

ZLKY45

ZQ26

Applicable roadway size W*H/m

1.7*2

1.7*2

2*2.2

2*2.2

2*2.2

2.2*2.5

2.2*2.5

2.2*2.5

2.2*2.5

2.2*2.5

Gauge

600//762/900mm     ( customized )

Loading Capacity  m3/h

20-30

30-40

35-45

30-40

40-50

50-60

50-60

60-70

80-100

50-60

Bucket volume㎡

0.17

0.17

0.2

0.2

0.2

0.26

0.3

0.3

0.45

0.26

Loading width  mm

1700

1700

Arbitrarily

2000

2000

Arbitrarily

2400

2400

Arbitrarily

2700

Bucket working height mm

1920

1920

1920

2180

2180

2240

2240

2240

2240

2240

Bucket down height  mm

1320

1320

1210

1360

1360



1360

1360

1460

1250

Gradeability





25°





25°





25°



Size

L    mm

2120

2120

2287

2480

2480





2620

2660

2400



W  mm

1130

1130

1372

1380

1380



1380

1380

1520

1090-1380



H   mm

1200

1200

1415

1460

1460



1545

1650

1650

1500

Travel motor power    kw

10.5

10.5

Hydraulic Motor 5000N/ 2units

10.5

10.5

Hydraulic Motor 5000N/ 2units

13

13

Hydraulic Motor 5000N/ 2units

8.83

Bucket motor power   kw

10.5

10.5

13

13

13

13

15

15

15

14.71

Hydraulic motor power



1.5

7.5



1.5

7.5



2.2

11



Weight   kg

3200

3300

3700

3750

3800

3900

4500

4500

4800

2700

Z- Rock loader;  W-No tangled rope;   YK-remote control;   L-Crawler type;    ZLKY-Hydraulic remote control crawler rock loader

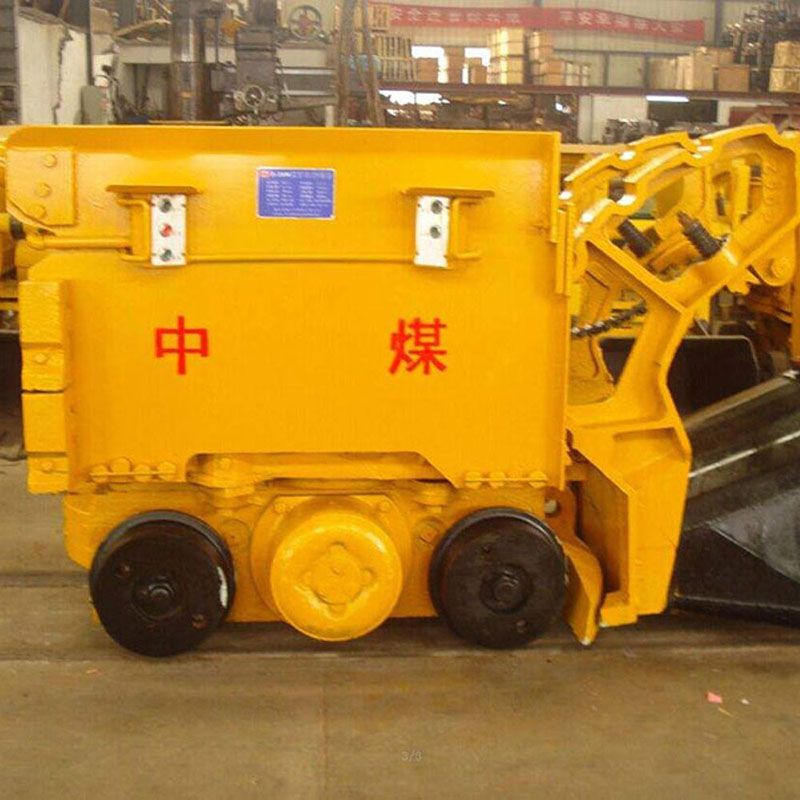

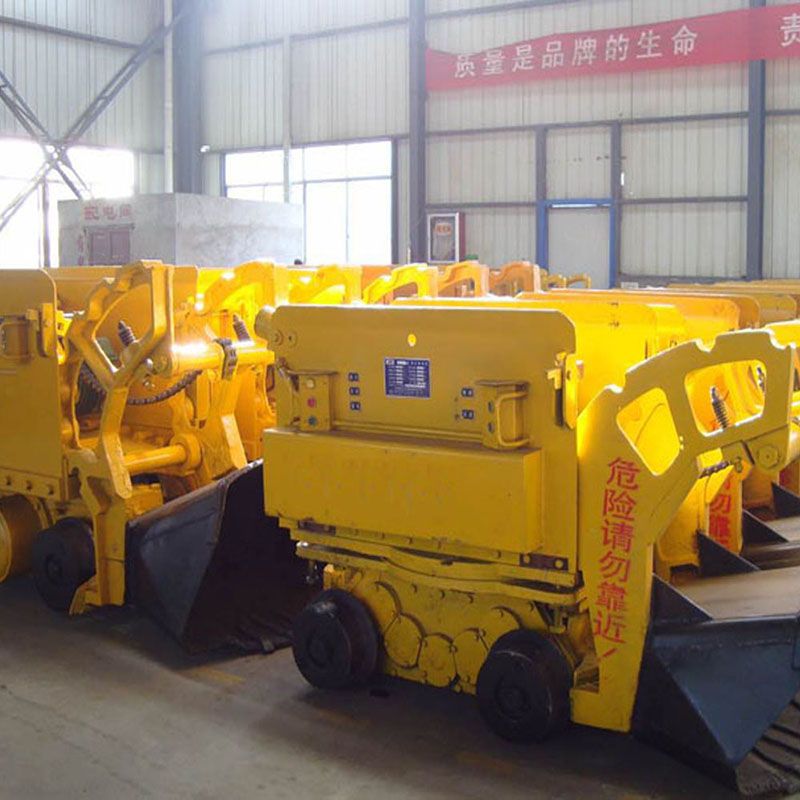

Pictures of Q-26 Pneumatic Mucker Rocker Shovel

 ZQ-26 Pneumatic Mucker Rocker Shovel  ZQ-26 Pneumatic Mucker Rocker Shovel
